SAMPLE COFFEE ROASTER TN100

Sample coffee roaster TN100-series is used to roast coffee bean for testing. The purpose is to examine the quality of coffee for researching, controlling before applying to a large roasting process quality. Sample roaster TN100 is also a best choice for you to invest in coffee shops, where coffee is required to be roasted and processed directly on the spot.

FUNCTIONS

  • Used to roast coffee bean for testing in small quantity from 100gr – 400gr. Giving a true coffee quality to research, control and apply to a large roasting process quality.
  • Sample roaster TN100 is designed with the number of roasting drum from 1 – 4 equivalent to its batch from 100gr – 400gr
  • With independent heat supply for each roasting drum makes it easy for setting different temperature ranges for many roasting drums on each roaster
  • Roasting time: 4 – 5 minutes/batch
  • Heating by gas or electricity according to customer’s requirement

SPECIFICATIONS

Model

(Heating by Gas or Electricity)

TN100 – 1 drum TN100 – 2 drums TN100 – 4 drums
Capacity 100g / batch / drum 100g / batch / drum 100g / batch / drum
Transmission 25W 25W 25W x 2
Power 1 phase 220V / 50 – 60 Hz 1 phase 220V / 50 – 60 Hz 1 phase 220V / 50 – 60 Hz
Roasting time 04 – 05 mins / batch 04 – 05 mins / batch 04 – 05 mins / batch
Roasting speed 60 rpm 60 rpm 60 rpm
No of cyclone 01 01 01
Roaster weight 28 Kg 43 Kg 81 Kg
Cyclone weight 13 Kg 30 Kg 36 Kg
Roaster dimension (mm) 560 x 400 x 560 560 x 520 x 560 560 x 1030 x 560
Cyclone dimension (mm) 860 x 380 x 380 1160 x 550 x 400 1300 x 550 x 400

HEATING METHOD

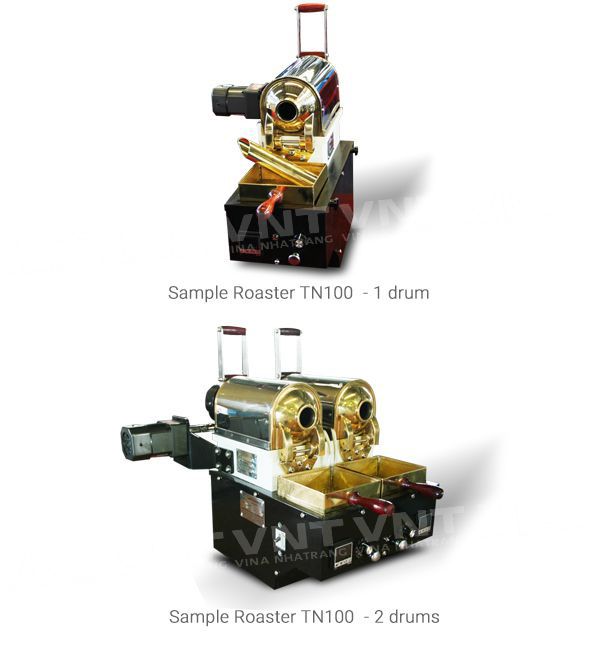

PICTURES OF ROASTER

ADVANTAGES

  • Saving time, material and cost for the selection of quality coffee beans
  • Modern technology
  • High durability
  • Easy to operate
  • Electricity saving
  • Easy to clean

FREQUENTLY ASKED QUESTIONS

I want to know how to visit VNT's sample system?

VNT has more than 30 years experience in manufacturing equipment and systems for processing agricultural products such as coffee, pepper, cocoa … in Vietnam and over the world. Depending on your requirement of machine capacity and factory’s location, we will give the most suitable advice as well as arrange a suitable place for you to visit. Please contact to our hotline 0966 757 757 to get more information.

I want to know about VNT warranty policy?

VNT provides free warranty service within 12 months from the date of delivery of the product for mechanical parts. Electric components, bearings, motors and other components not manufactured by VNT are warranted within 06 months. Please read the manual instruction carefully to understand the policies applied at VNT and how to contact VNT’s warranty department.

I want to know how to contact to VNT?

Please contact to our hotline 0966 757 757 for supporting. In addition, you can leave a message in the “Contact for Price” section below, we will get back to you within 24 hours.
